Product Detail

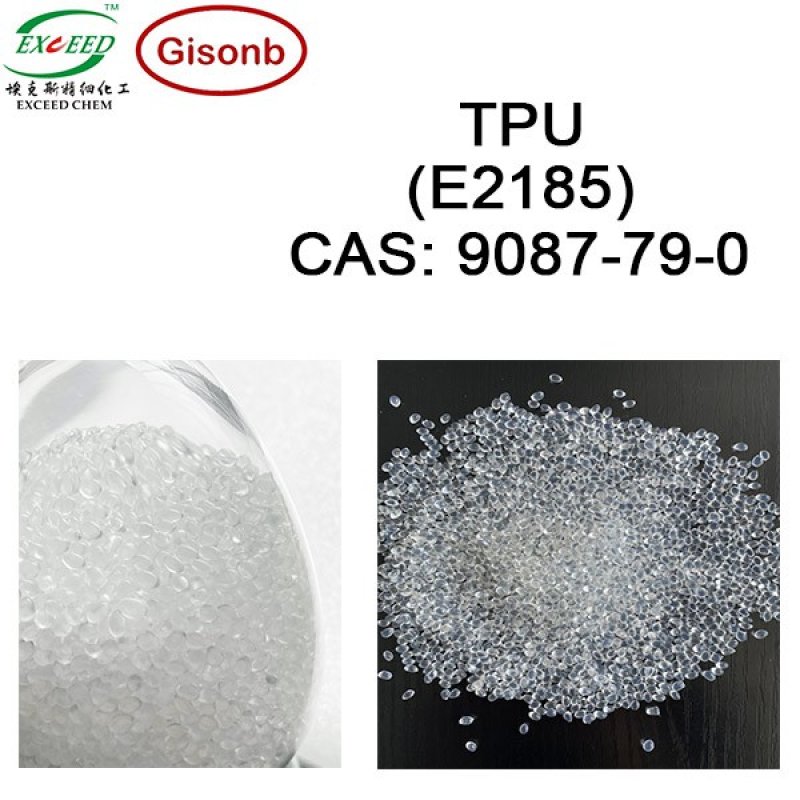

Thermoplastic Polyurethane

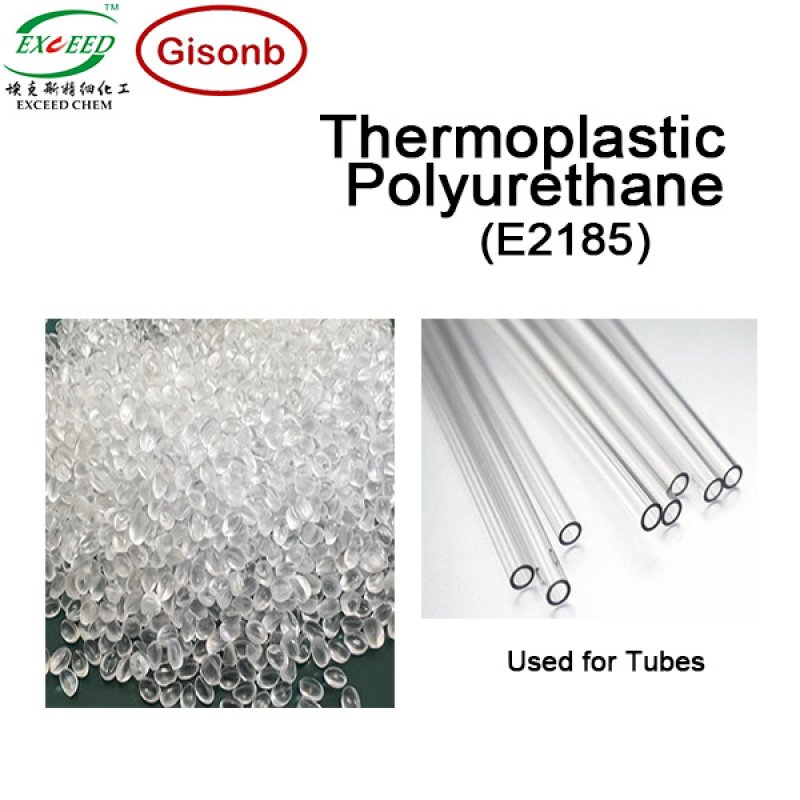

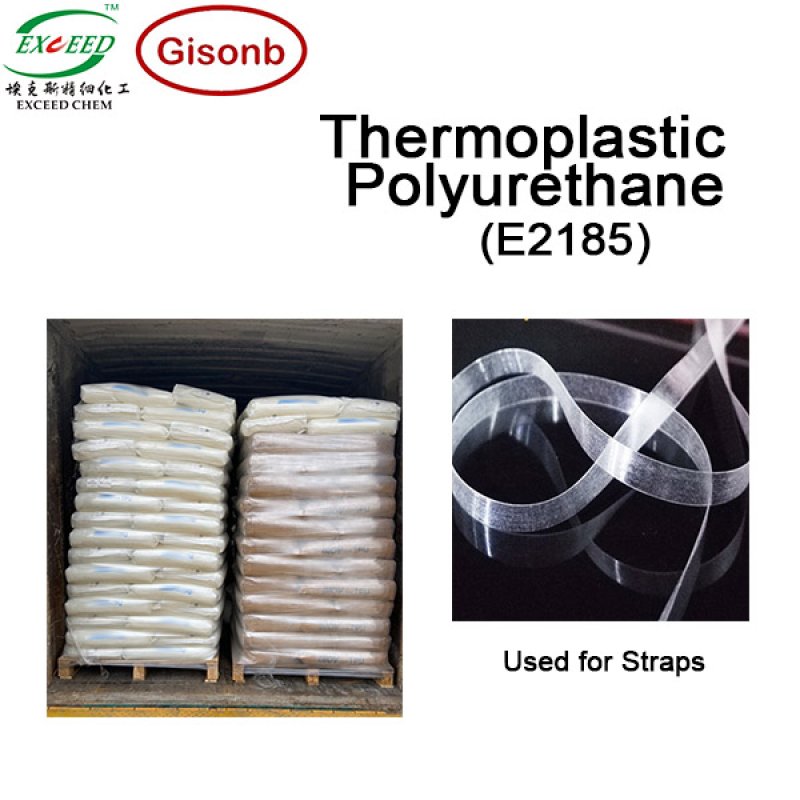

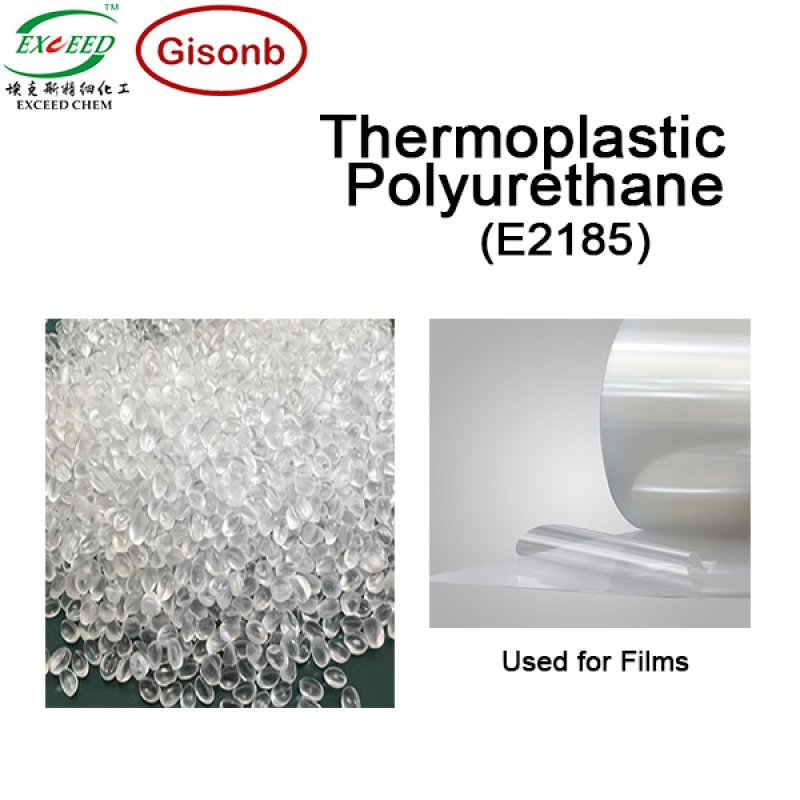

Application: Cable, Tube, Air hose, Conveyor belt, Elastic tape, Straps and film etc.

● Description: Polyester-based TPU.

● Processing methods: Extrusion.

● Characteristics: Excellent physical properties, Easy&stable processing, Hydrolysis resistance and reusable properties.

● Properties:

Item Value
Yellow index(Yi) 1.8
Specific gravity(g/cm3) 1.23
Hardness(Shore A) 85±1
Tensile strength(Mpa) 34
100% Modulus(Mpa) 7.5
300% Modulus(Mpa)15
Elongation at break(%)560
Tear strength (KN/m)108
Abrasion (mm³)   45
Flowing beginning Point (℃)180
Processing temperature (℃)170-200

● Processing & Guide

For optimum results, previous drying of the product 2-3 hours under 100~110℃ is advisable, in a hot air circulatory, vacuum desiccate-air dryer.

● Package & Storage


Never put opened packages exposed in open air for prolonged periods of time during processing. Because of the high moisture absorbing property, TPU products should be well stored in a dry, cool and shady area.

● Note

These are typical values and should not be used as specifications.
