T3160U

Product Detail

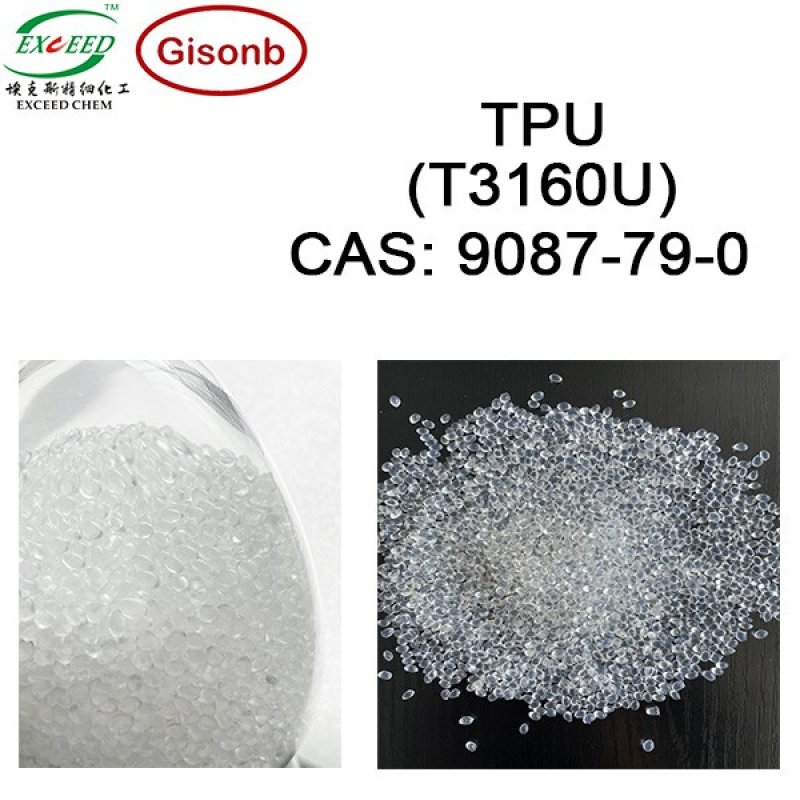

Thermoplastic Polyurethane

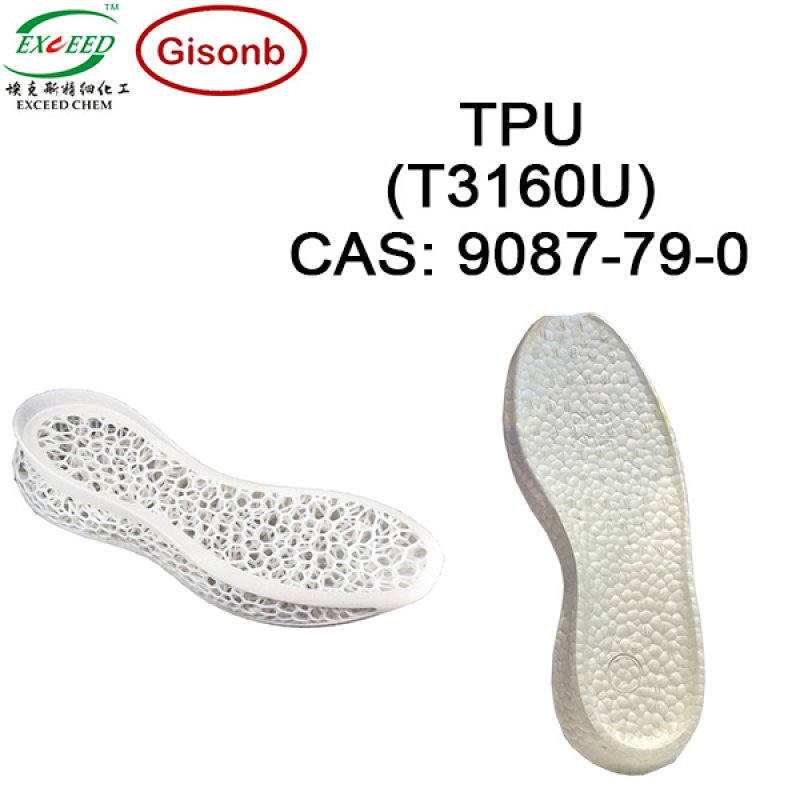

 Application: Shoe sole

 Description: Polyester-based TPU

● Processing methods: Injection mould.

 Characteristics: Easy processing, Shorter cycle time, High transparency, UV resistance, Over-molding and other injection method for shoe application.

● Properties:

ItemValue
Yellow index(Yi)1.5
Specific gravity(g/cm3)1.2
Hardness(Shore A)62±1
Tensile strength(Mpa)19
100% Modulus(Mpa)3.5
300% Modulus(Mpa)5.5
Elongation at break(%)870
Tear strength (KN/m)68

● Processing & Guide

For optimum results, previous drying of the product during 3-4 hours at 90~100℃ is advisable, in a hot air circulatory, vacuum desiccate-air dryer.

Product

Feed (℃

Transport(℃)

Nozzle (℃)

90180

190

180

● Package & Storage

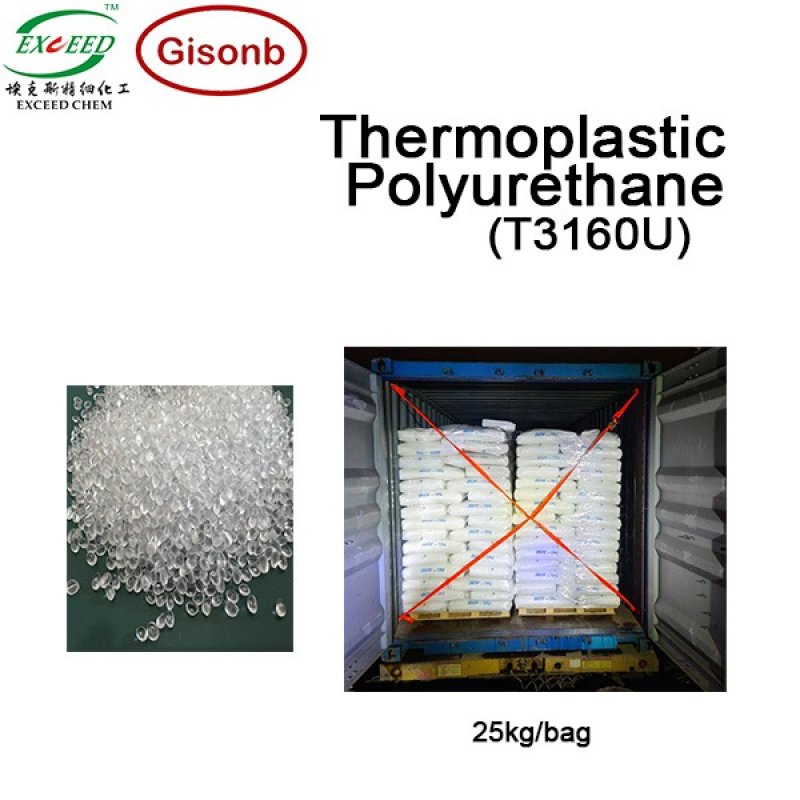

25kg/bag.

Never put opened packages exposed in open air for prolonged periods of time during molding and processing. Because of the high moisture absorbing property, TPU products should be well stored in a dry, cool and shady area.

● Note

These are typical values and should not be used as specifications.
