E4195

Product Detail

Thermoplastic Polyurethane

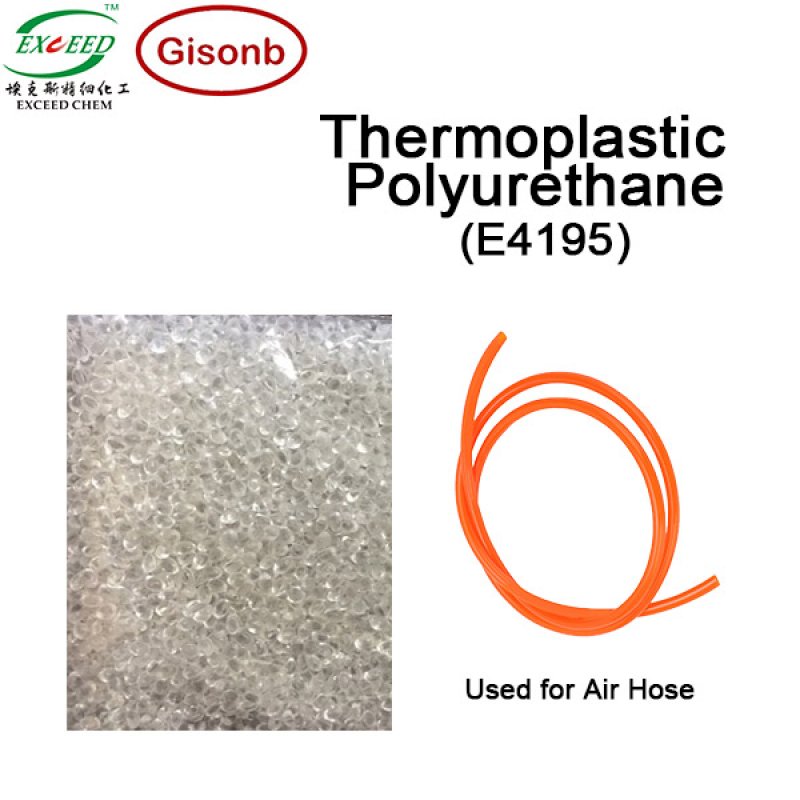

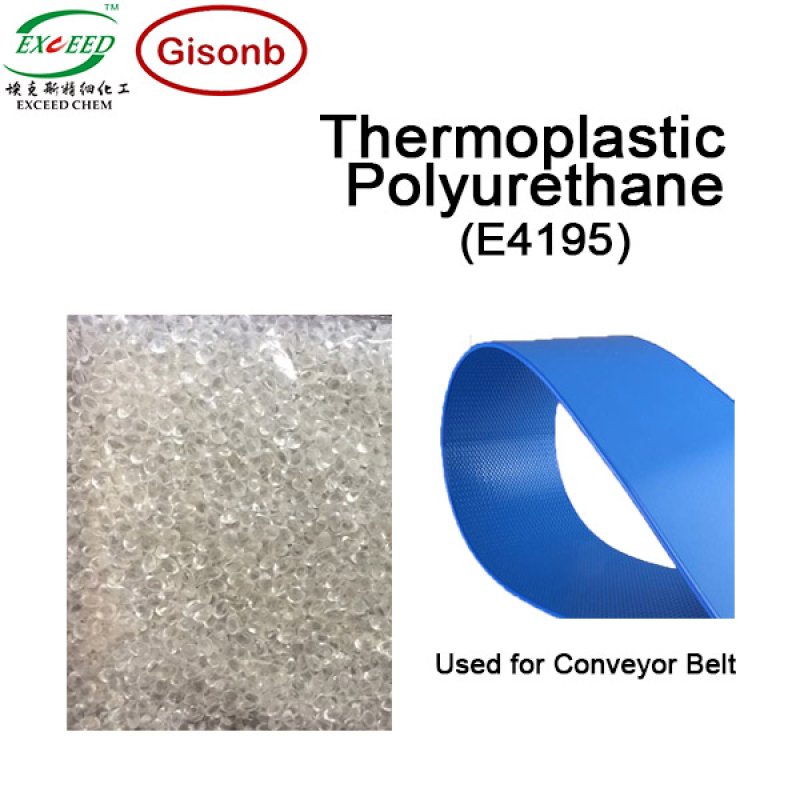

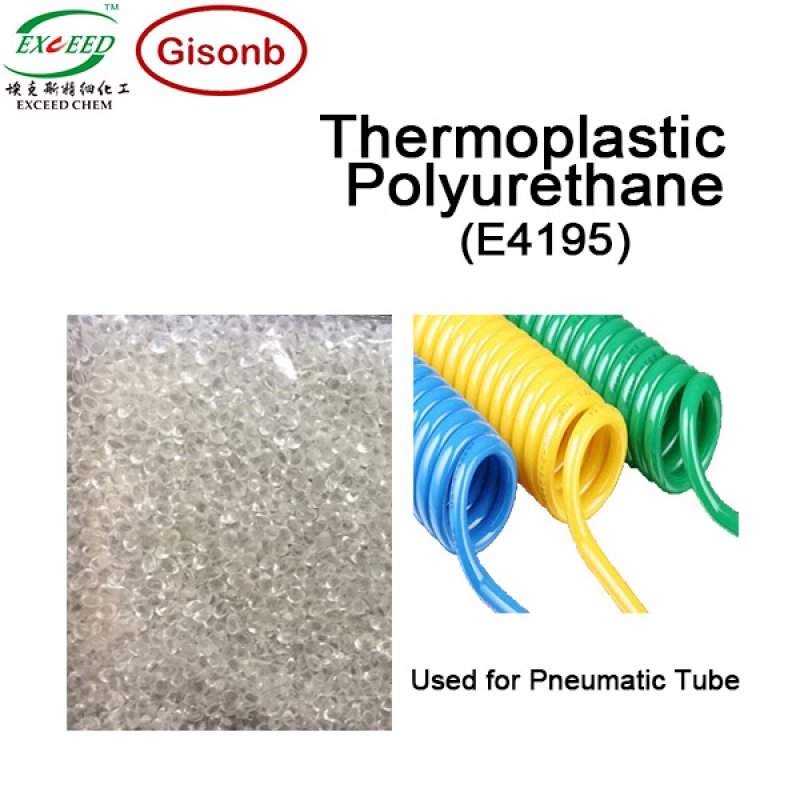

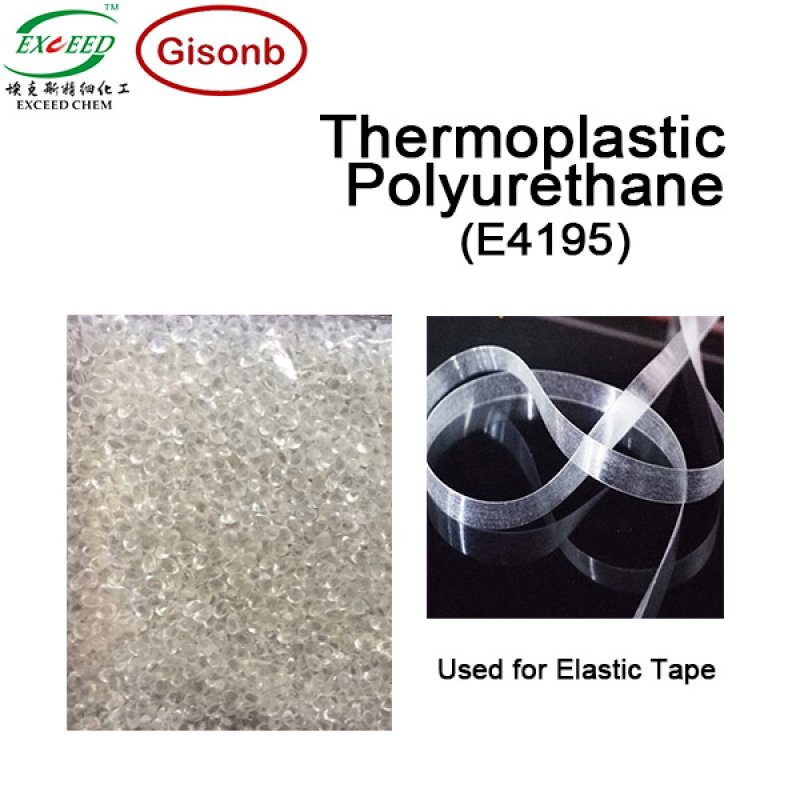

Application: Cable, Pneumatic tube, Air hose, Conveyor belt, Elastic tape etc.

● Description: Polyester-based TPU.

● Processing methods: Extrusion.

● Characteristics: Excellent physical properties, Easy&stable processing, Cold resistance, Hydrolysis resistance and reusable properties.

● Properties:

ItemValue
Yellow index(Yi)0-2
Specific gravity(g/cm3)1.23
Hardness(Shore A) 96±1
Tensile strength(Mpa) 46
100% Modulus(Mpa) 13
300% Modulus(Mpa)28
Elongation at break(%)500
Tear strength (KN/m) 175
Flowing beginning Point.(℃)197
Processing temperature(℃)190-210

● Processing & Guide

For optimum results, previous drying of the product 2-3 hours under 100~110℃ is advisable, in a hot air circulatory, vacuum desiccate-air dryer.

● Package & Storage

25kg/bag.

Never put opened packages exposed in open air for prolonged periods of time during processing. Because of the high moisture absorbing property, TPU products should be well stored in a dry, cool and shady area.

● Note

These are typical values and should not be used as specifications.
