Product Detail

Thermoplastic Polyurethane

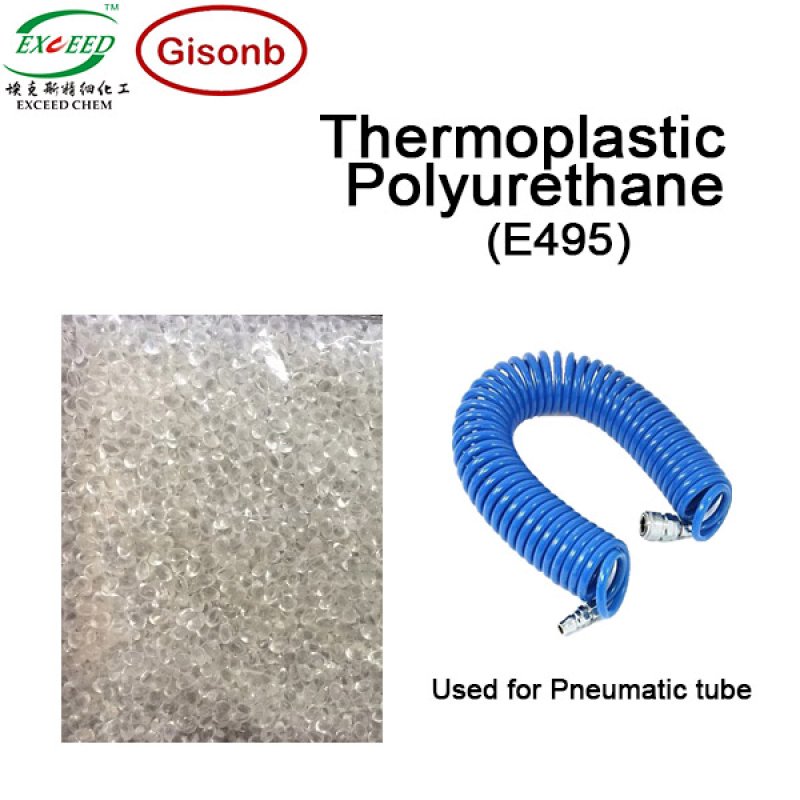

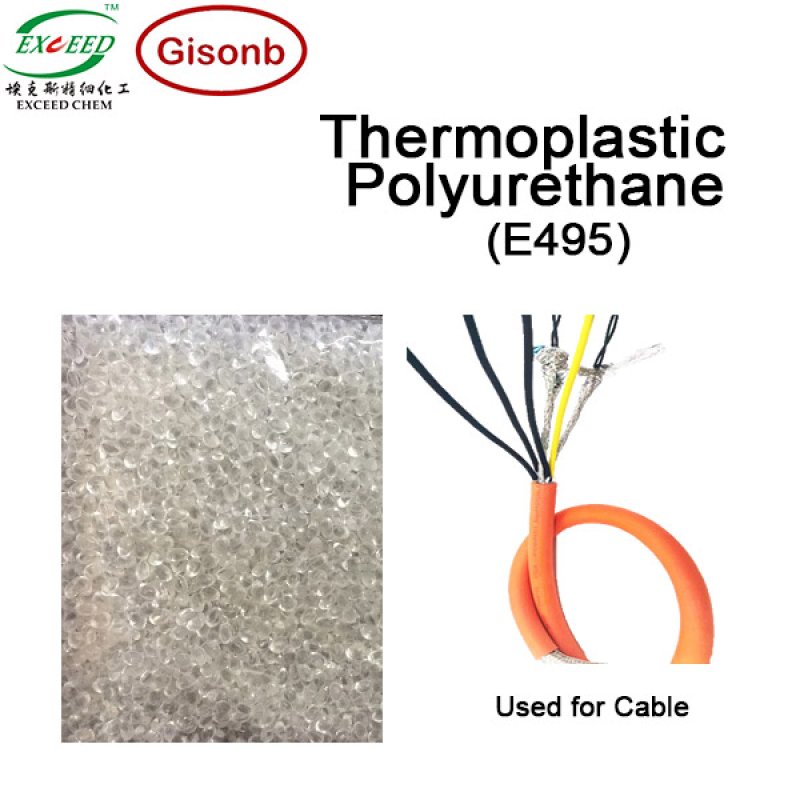

Application: Cable, Pneumatic tube, Air hose, Conveyor belt, Elastic tape, Straps and film etc.

● Description: Polyester-based TPU.

● Processing methods: Extrusion, Blowing mould.

● Characteristics: Excellent physical properties, Easy&stable processing, Cold resistance, Hydrolysis resistance, High transparency and reusable properties.

● Properties:

Item Value
Yellow index(Yi)0-2
Specific gravity(g/cm3)  1.22
Hardness(Shore A) 98±1
Tensile strength(Mpa) 43
100% Modulus(Mpa) 13
300% Modulus(Mpa)28
Elongation at break(%) 495
Tear strength (KN/m)170
Flowing beginning Point.(℃)184
Processing temperature(℃)170-200

● Processing & Guide

For optimum results, previous drying of the product 2-3 hours under 100~110℃ is advisable, in a hot air circulatory, vacuum desiccate-air dryer.

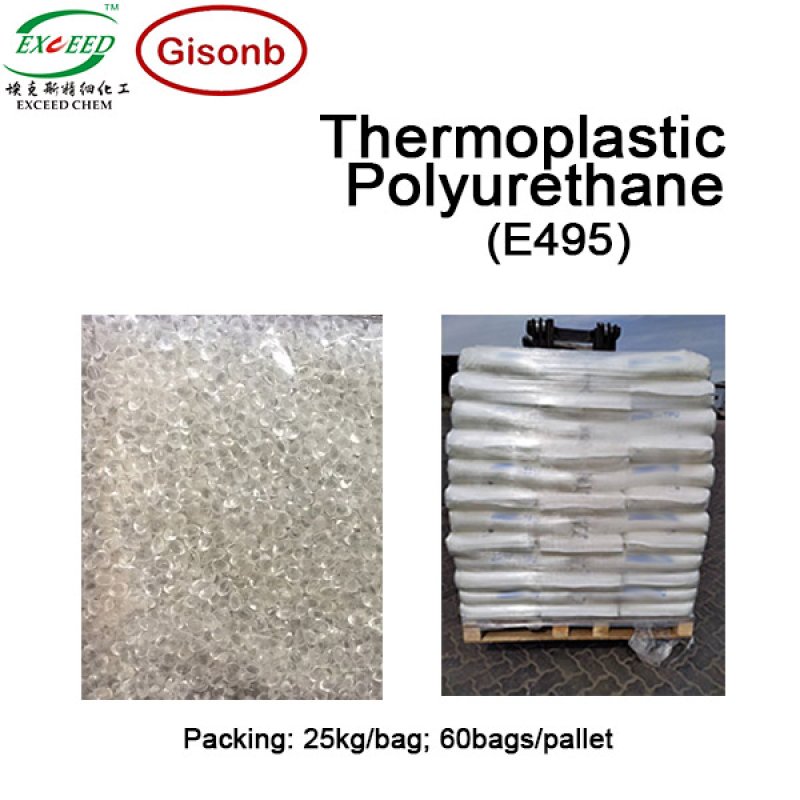

● Package & Storage


Never put opened packages exposed in open air for prolonged periods of time during processing. Because of the high moisture absorbing property, TPU products should be well stored in a dry, cool and shady area.

● Note

These are typical values and should not be used as specifications.
