E4180

Product Detail

Thermoplastic Polyurethane

Application: Cable, Tube, Air hose, Conveyor belt, Elastic tape, Straps and film etc.

 Description: Polyester-based TPU

● Processing methods: Extrusion

● Characteristics: Excellent physical properties, Easy&stable processing, Hydrolysis resistance and reusable properties.

● Properties:

Item Value
Yellow index(Yi) 1.2
Specific gravity(g/cm3)1.19
Hardness(Shore A)85±1
Tensile strength(Mpa) 37
100% Modulus(Mpa)8.5
300% Modulus(Mpa)16
Elongation at break(%)590
Tear strength (KN/m)118
Abrasion (mm³)42
Flowing beginning Point.(℃)182
Processing temperature(℃)170-200

● Processing & Guide

For optimum results, previous drying of the product 2-3 hours under 100~110℃ is advisable, in a hot air circulatory, vacuum desiccate-air dryer.

● Package & Storage

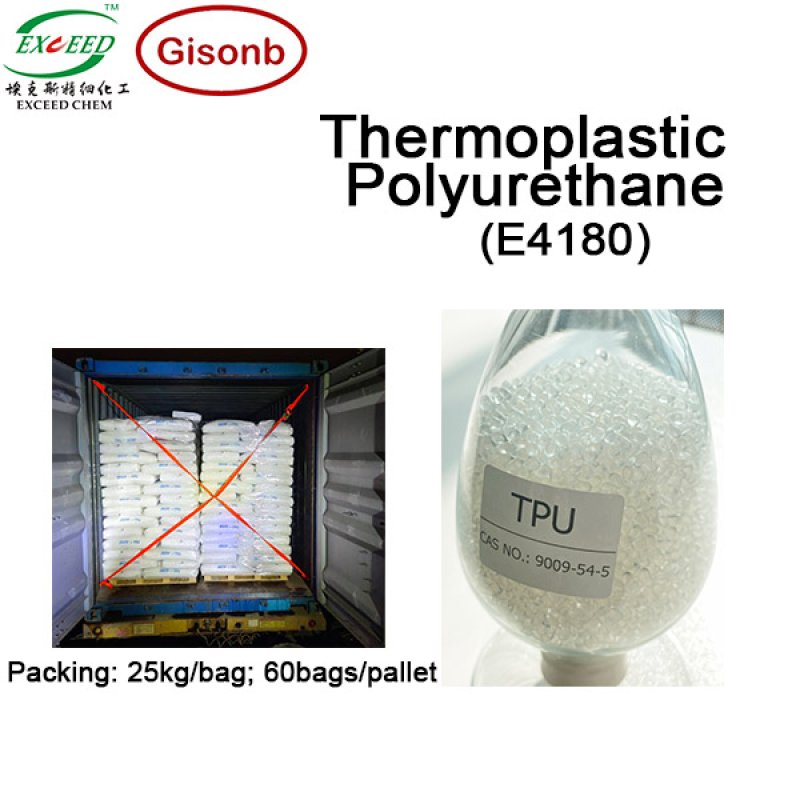

25kg/bag.

Never put opened packages exposed in open air for prolonged periods of time during processing. Because of the high moisture absorbing property, TPU products should be well stored in a dry, cool and shady area.

● Note

These are typical values and should not be used as specifications.
