Product Detail

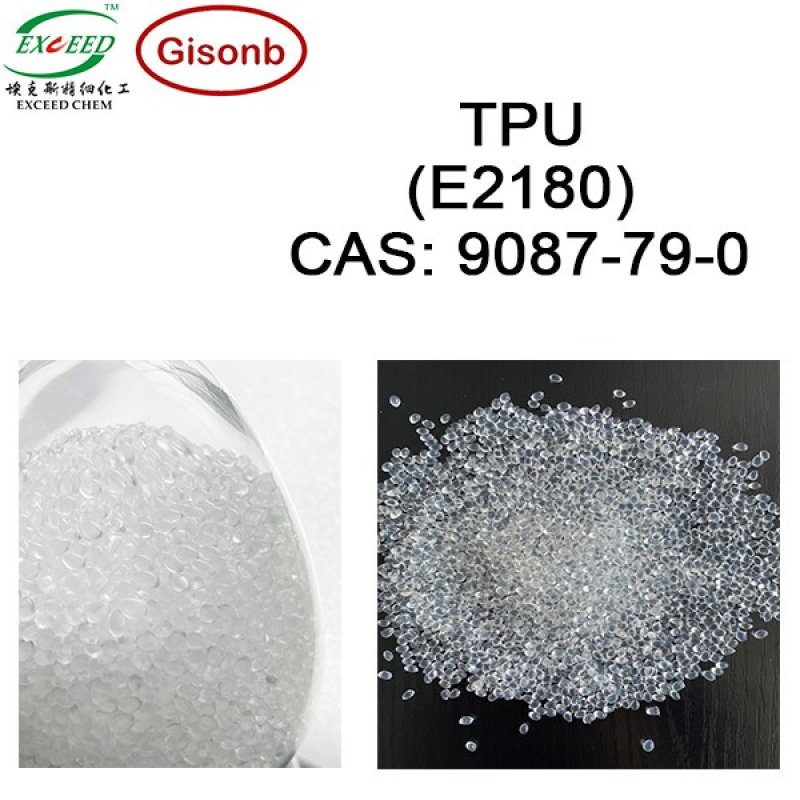

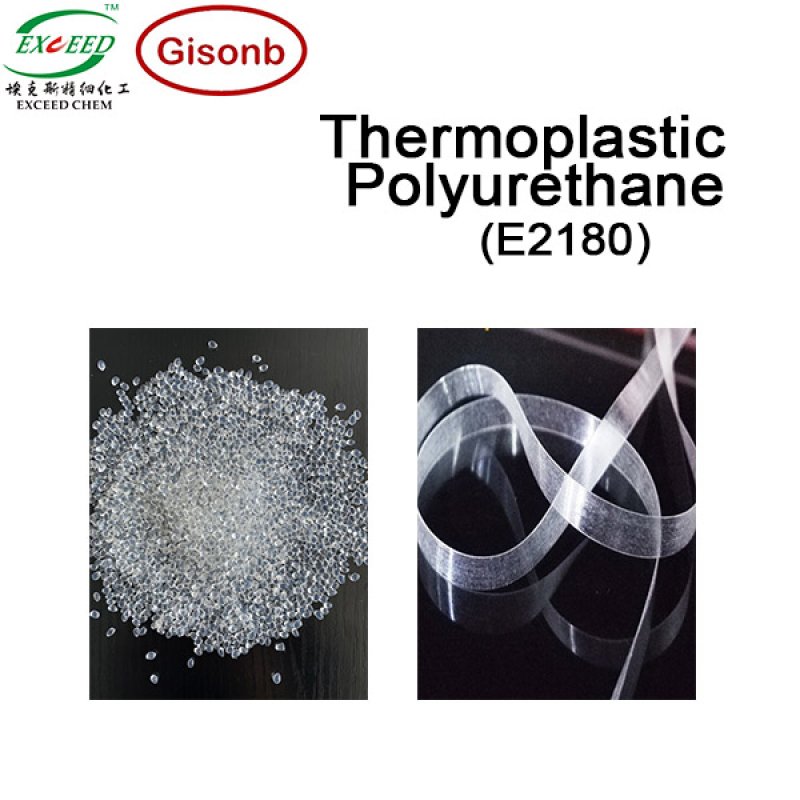

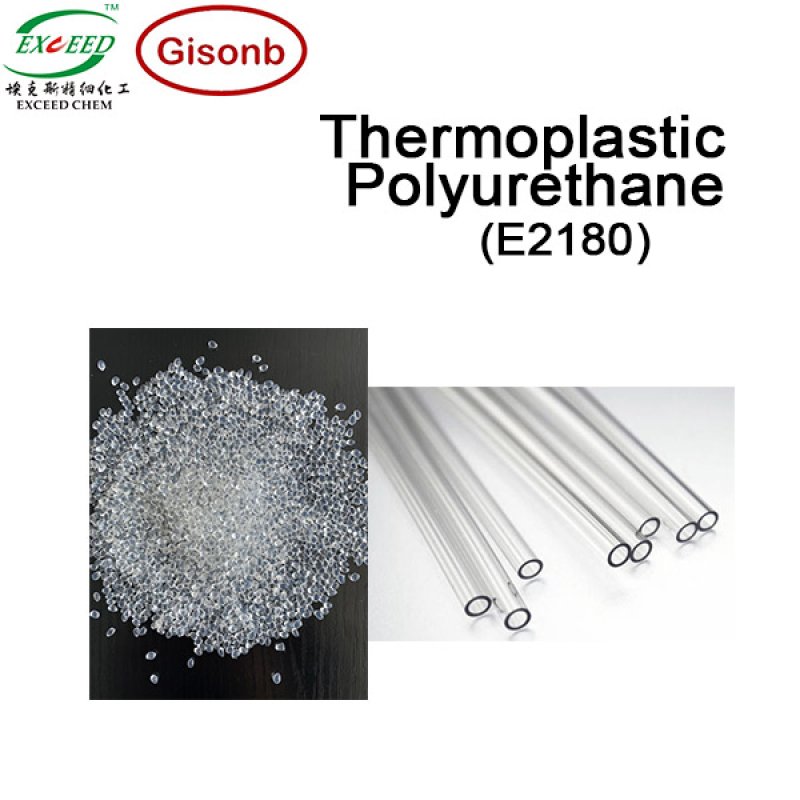

Thermoplastic Polyurethane

Application: Cable, Tube, Air hose, Conveyor belt, Elastic tape, Straps and film etc.

● Description: Polyester-based TPU

● Processing methods: Extrusion

● Characteristics: Excellent physical properties, Easy&stable processing, Hydrolysis resistance and reusable properties.

● Properties:

Yellow index(Yi) 1.3
Specific gravity(g/cm3) 1.23
Hardness(Shore A) 81±1
Tensile strength(Mpa)  30
100% Modulus(Mpa)7.5
300% Modulus(Mpa) 10
Elongation at break(%) 520
Tear strength (KN/m)100
Abrasion (mm³) 48
Flowing beginning Point.(℃)176
Processing temperature(℃)180-210

● Processing & Guide

For optimum results, previous drying of the product 2-3 hours under 100~110℃ is advisable, in a hot air circulatory, vacuum desiccate-air dryer.

● Package & Storage


Never put opened packages exposed in open air for prolonged periods of time during processing. Because of the high moisture absorbing property, TPU products should be well stored in a dry, cool and shady area.

● Note

These are typical values and should not be used as specifications.
